How the Ionosphere Can Assist NORAD Detect Cruise Missiles Sooner

The Air Drive is bringing again an previous radar expertise to detect cruise missiles, however consultants warn it have to be deployed sooner alongside a complete community of missile detecting and defeating programs to be efficient.

Over-the-horizon radar (OTHR) was first developed in the course of the Chilly Warfare to detect Soviet bomber assaults from hundreds of miles away, in keeping with the Federation of American Scientists. Most radars are restricted by the curvature of the Earth, permitting potential threats to fly ‘beneath the radar’ with out being detected. However OTHR bounces high-frequency radio indicators off the ionosphere, which begins about 50 miles above the Earth’s floor. The descending indicators rebound off objects beneath, then again off the ionosphere earlier than returning to the receiver. OTHR gives early warning of incoming threats greater than 1,000 miles away, a lot farther than typical radar programs.

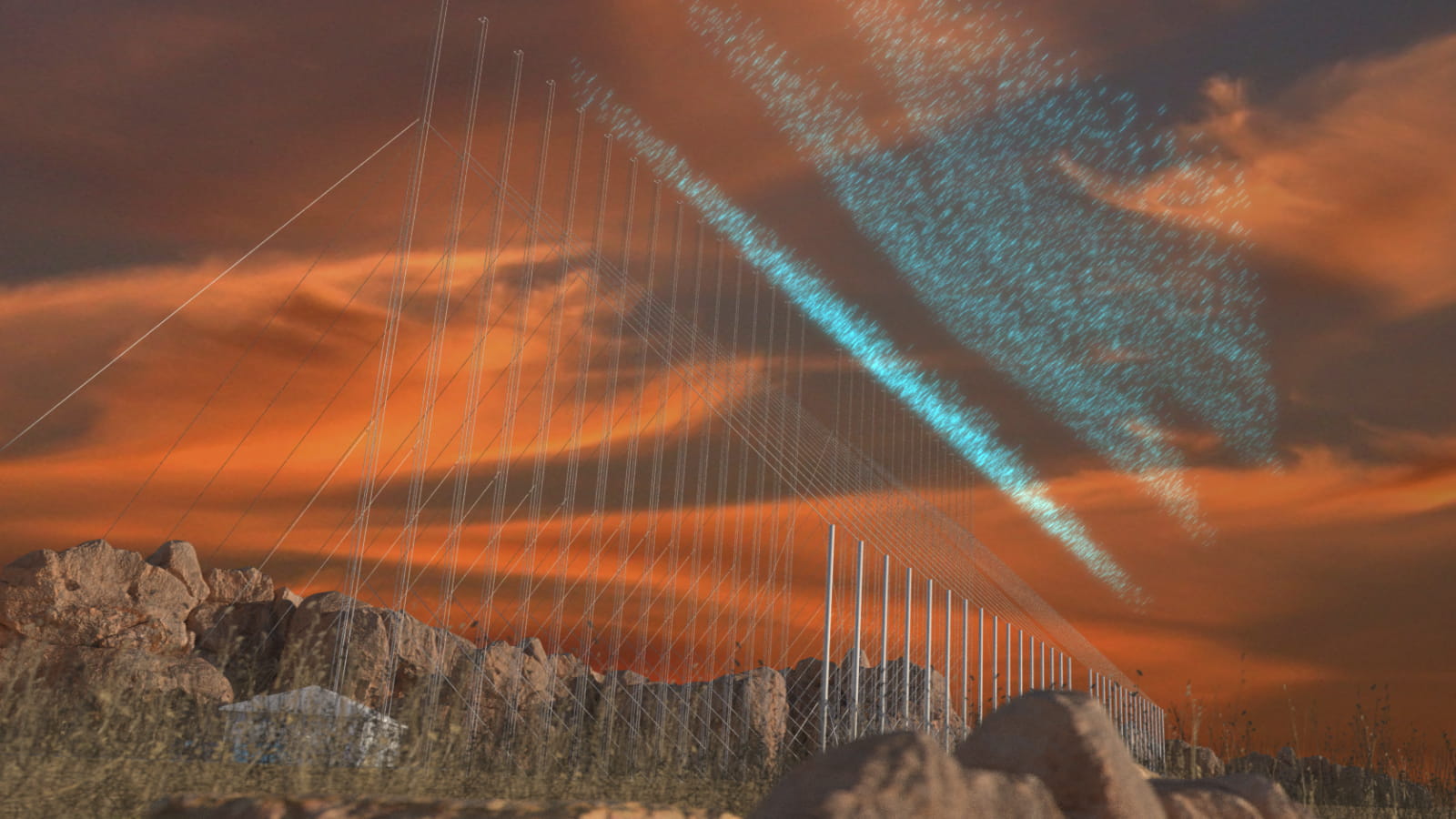

An RTX graphic illustrates a next-generation over-the-horizon radar sign bouncing off the ionosphere, giving it consciousness past the horizon. Courtesy of RTX

A plan to construct OTHR in Alaska was deserted after the Chilly Warfare ended, however the rising menace of cruise missiles from doable adversaries corresponding to China and Russia has introduced the system again into focus.

Not like ballistic missiles, which observe predictable flight paths, cruise missiles can maneuver unpredictably at low altitudes, be launched from a variety of platforms, and will attain hypersonic speeds as expertise develops.

The Air Drive plans to construct 4 OTHRs for North American Aerospace Protection Command/U.S. Northern Command (NORAD/NORTHCOM), however the course of is within the early levels; on Aug. 21, the U.S. Military Corps of Engineers launched a sources sought discover for constructing “two distant websites within the North-West United States.”

Once they do go up, the brand new programs could possibly be extra superior than their Chilly Warfare predecessors. RTX, the corporate not too long ago generally known as Raytheon Applied sciences, is growing a “next-generation” OTHR that features superior transmitters, digital receivers, and a extra compact receiver array. A press launch in regards to the system notes “adaptive sign processing and superior digital beamforming,” which ought to mitigate sign litter, cut back processing necessities, and enhance goal detection.

“The following technology that we want for this specific mission set will increase the sensitivity of the radar considerably,” Paul Ferraro, president of air energy at Raytheon, the protection enterprise unit for RTX, advised reporters at an Aug. 31 occasion.

RTX is not any stranger to OTHR programs, having developed three within the Nineteen Nineties that the Navy makes use of as surveillance property for drug trafficking interdiction, Ferraro stated. Even so, OTHR isn’t efficient and not using a bigger system to behave on the data it gives. Although OTHR can see an incredible distance, it doesn’t have the identical constancy as different radars that may produce “engagement high quality tracks,” Ferraro stated.

Which means as soon as OTHR detects a menace, it should be capable of share data rapidly throughout huge distances so different radars can hone in on the article, then ship that data to planners at NORAD/NORTHCOM.

“It’s critically essential that each one of this information is offered to an operator in whole, as a result of that provides them probably the most complete image of the menace house that they’re making an attempt to defend in opposition to,” stated Ferraro, echoing what Air Drive Gen. Glen D. VanHerck, the pinnacle of NORAD/NORTHCOM, advised lawmakers in Could.

“There needs to be area consciousness between the over-the-horizon radars that hyperlink the information from there to an end-game effector,” the overall stated. “We have to look extra broadly at the remainder of the infrastructures, the radar as effectively, and make sure the information from these programs is included in an built-in air and missile protection system that may result in effectors.”

The northern lights glow behind a Patriot M903 launcher station assigned to fifth Battalion, 52nd Air Protection Artillery Regiment, throughout Train Arctic Edge 2022 at Eielson Air Drive Base, Alaska, Mar. 5, 2022. U.S. Air Drive picture by Senior Airman Joseph P. LeVeille.

Specialists and officers warn that there are lots of holes in immediately’s air and missile protection system. The North Warning System, a community of 47 radar stations monitoring the air house over the Canadian Arctic and Alaska, is predicated on outdated expertise first developed within the Seventies, wrote Dr. Caitlin Lee, senior fellow on the Mitchell Institute, in a June paper. The expertise could develop into much less efficient as China and Russia develop stealthier cruise missiles that could possibly be launched from an array of platforms. VanHerck himself described the system as “a stable fence shrinking to a picket fence.”

Different gaps within the fence are shaped by a shortage of Arctic air- and space-based surveillance property; a scarcity of Arctic infrastructure like runways and gas storage; issue figuring out airborne objects; and inefficient information-sharing programs, Lee wrote. Fixing it’s going to require a modernized, holistic “missile defeat” system that includes sturdy detection and monitoring mechanisms and a variety of interception instruments together with passive, kinetic, and non-kinetic capabilities, corresponding to cyber warfare, directed power, and digital assaults, Lee stated.

There are indicators of progress. In March, President Joe Biden and Canadian Prime Minister Justin Trudeau laid out a NORAD modernization plan pledging two next-generation OTHR programs “protecting the Arctic and Polar approaches, the primary by 2028.” The plan additionally commits to constructing northern ahead working areas for fifth-generation plane and mobility/refueling plane. It additionally seeks to enhance “the cybersecurity and resiliency of our crucial infrastructure.”

Canada plans to construct two OTHR programs, whereas the Air Drive is answerable for funding one other 4, however the entire set is not going to be operational till 2031. That isn’t quick sufficient, wrote Lee, who known as for investing $55 million on NORAD’s unfunded precedence checklist into accelerating OTHR to 2027. She additionally urged investing about $211 million to amplify the North Warning System with 9 superior cell Three Dimensional Expeditionary Lengthy Vary Radars.

“Arctic area consciousness and knowledge dominance ought to be a prime DOD precedence now, not in a decade or extra, to shore up cruise missile protection of the homeland,” she wrote.
